Dual Intel 10GbE network ports, optional redundant power supply, Intel Server management port - IPMI 2.0 & Redfish, 2x PCIe x16 Gen3 slots.
Buy with confidence knowing all Broadberry CyberServe rack servers are backed up by our 3 year warranty, with further warranty upgrade options available.
Configure this solution with Intel Xeon Scalable processors, which deliver outstanding performance and airtight security.
Featuring dual processors, this system enjoys boosts to its performance for multi-threaded programs, allowing for smooth performance for the most demanding CPU intensive applications.
Coming with a redundant power supply, this system has a backup power source it can fall back on if the original power source were to fail.
This system can be configured with SATA drives for cost-effective 12gb/s storage.
This system can be configured with SAS drives for bi-directional storage, which deliver enhanced speed, reliability and availability.
Enjoy a simple, flexible and cost-efficient cloud platform that offers authentic hybrid and multi-cloud computing.

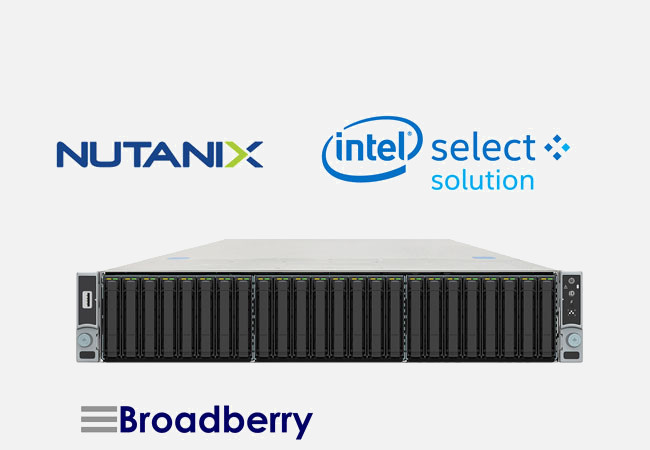

Intel Server System R2224WFTZSR | |
---|---|
Supported Operating Systems | Windows Server 2019*, Windows Server 2016*, Red Hat Enterprise Linux 7.6*, Red Hat Enterprise Linux 7.5*, SUSE Linux Enterprise Server 15*, SUSE Linux Enterprise Server 12 SP4*, Ubuntu* |
Chassis Form Factor | 2U, Spread Core Rack |
Chassis Dimensions | 16.93" x 27.95" x 3.44" |
Board Form Factor | Custom 16.7" x 17" |
Socket | Socket P |
TDP | 165 W |
Heat Sink | (2) FXXCA78X108HS |
Heat Sink Included | Yes |
System Board | Intel Server Board S2600WFTR |
Board Chipset | Intel C624 Chipset |
Target Market | Mainstream |
Rack-Friendly Board | Yes |
Power Supply | 1300 W |
Power Supply Type | AC |
# of Power Supply Included | 1 |
Redundant Power Supported | Supported, requires additional power supply |
Backplanes | Included |
Included Items | (1) 2U Chassis with Quick Reference Label affixed to top cover (1) Intel Server Board S2600WFT (dual 10 GbE LAN) (2) PCIe* riser card brackets. (2) 3-slot PCIe* riser cards (1) 2-slot low profile PCIe* riser card (24) 2.5" hot-swap drive bays with drive carriers and blanks. (3) SAS/NVMe combo backplane (24) 2.5" hot-swap drive tool less carriers (1) Storage rack handle assembly A2UHANDLKIT o 1 set storage rack handles o 410 mm front panel cable H26893-xx o 640 mm front panel USB 2.0 cable H20005-xxx (1) 250 mm backplane I2C cable H91166-xxx (2) 75 mm backplane to backplane I2C jumper cable H91163-xxx (2) 730 mm mini SAS HD VT-VT cable AXXCBL730HDHD (4) 875 mm mini SAS HD VT-VT cable AXXCBL875HDHD (1) 400/525/675 mm backplane power cable H82108-xxx (1) Standard 2U air duct (6) Hot-swap system fans FR2UFAN60HSW See Configuration Guide for complete list |
Supplemental Information | |
Description | Integrated 2U system featuring an Intel Server Board S2600WFTR, supporting two 2nd Generation Intel Xeon Scalable processors, (24) 2.5 inch hot-swap drives, 24 DIMMs, (1)1100W redundant-capable power supply. |
Memory & Storage | |
Memory Types | DDR4 ECC RDIMM/LRDIMM 2133/2400/2666/2933 & Intel Optane DC Persistent Memory Supported |
Max # of DIMMs | 24 |
Max Memory Size (dependent on memory type) | 7.5 TB |

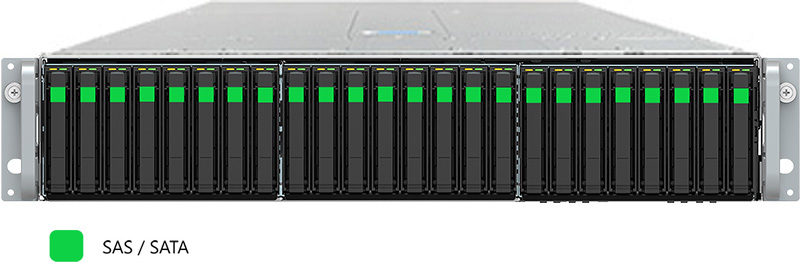

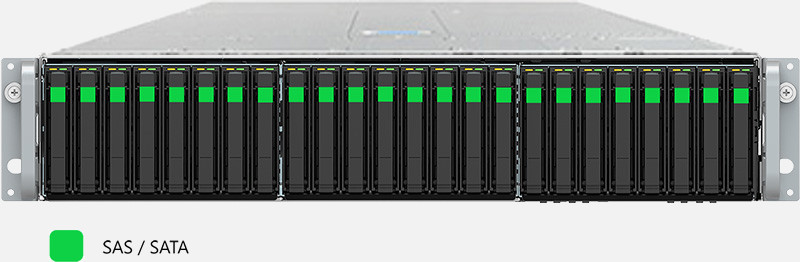

# of Front Drives Supported | 24 |
Front Drive Form Factor | Hot-swap 2.5" |
# of Rear Drives Supported | 2 |
Rear Drive Form Factor | 2.5" SATA (optional) |
# of Internal Drives Supported | 2 |
Internal Drive Form Factor | M.2 SSD |
Intel Optane Persistent Memory Supported | Yes |
Processor Graphics | |
Integrated Graphics | Yes |
Expansion Options | |
PCIe x4 Gen 3 | 1 |
PCIe x8 Gen 3 | 3 |
PCIe x16 Gen 3 | 2 |
PCIe OCuLink Connectors (NVMe support) | 4 |
Connector for Intel Integrated RAID Module | 1 |
Riser Slot 1: Total # of Lanes | 24 |
Riser Slot 2: Total # of Lanes | 24 |
Riser Slot 3: Total # of Lanes | 12 |
I/O Specifications | |
# of USB Ports | 5 |
Total # of SATA Ports | 10 |
# of UPI Links | 2 |
RAID Configuration | SW RAID 0, 1, 10, optional 5 |
# of Serial Ports | 2 |
Integrated LAN | 1GbE (mgmt port) + Dual Port RJ45 10GbE |
# of LAN Ports | 3 |
Optical Drive Support | Yes |
Package Specifications | |
Max CPU Configuration | 2 |
Advanced Technologies | |
Intel Optane Memory Supported | No |
Intel Remote Management Module Support | Yes |
Integrated BMC with IPMI | IPMI 2.0 & Redfish |
Intel Node Manager | Yes |
Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
Intel Rapid Storage Technology enterprise | Yes |
TPM Version | 2 |
