Alle Bestellungen werden in Deutschland gebaut, versendet und supported

Xeon E Prozessoren Servers

Exzellente Business-Klasse Server , diese CyberServe Xeon Variante ist auf Intel Xeon-Prozessoren basiert.Eignet sich optimal for Unternehmen, die ein erschwingliches, sicheres und effizientes System suchen. Dieser Einprozessorserver ( mit einem Sockel) können Sie bis zu 64 GB DDR4 RAM und 16 Prozessorkernen konfigurieren.

Eigenschaften:

  • Basiert auf Intel Xeon E Processor Variante.
  • Verfügt über bis zu 16 Prozessorkernen und 12 Threads
  • Größere Effizienz und Leistung.
  • Unterstützt bis zu 40 PCIe Lanes für Speicher, Grafik und Netzwerkerweiterungen.
  • Reduzierter Stromverbrauch.

Short Depth 2.5" Drives
CyberServe Xeon E-100S

Very Short Depth 1U Server, Intel Xeon E 2300 Series, Single Processor, 2x Internal Hard Drives

Form Factor:
1U
Drive Bays:
Fixed Drives
HDD Size:
2.5" Drives
Drive Interface:
SATA
Server Processor:
Xeon E Processor
Features:
Ultra Low Power, Short Depth
Max RAM Capacity:
64GB
Konfigurieren Ab: €998
Konfigurieren
Short Depth
CyberServe Xeon-E104F Front I/O

Short-Depth 1U Xeon Server Appliance with Front I/O Ports, 1x PCIe Slot

Form Factor:
1U
Drive Bays:
Fixed Drives
HDD Size:
2.5" Drives
Drive Interface:
SATA
Server Processor:
Xeon E Processor
Features:
Ultra Low Power, Short Depth, Front I/O Ports
Max RAM Capacity:
64GB
Konfigurieren Ab: €1,005
Konfigurieren
Short Depth 2.5" Drives
Cyberserve Xeon E-RS100-E11

Green Design, Very Short Depth

Form Factor:
1U
Drive Bays:
Fixed Drives
HDD Size:
2.5" Drives
Drive Interface:
SATA
Server Processor:
Xeon E Processor
Features:
Short Depth
Max RAM Capacity:
128GB
Konfigurieren Ab: €1,212
Konfigurieren
Short Depth 3.5" Drives
CyberServe Xeon E-203S

Very Short Depth 2U Server, Intel Xeon E 2300 Series, Single Processor, 3x Internal Drive Bays, up to 128Gb DDR4 ECC RAM

Form Factor:
2U
Drive Bays:
Hot-Swap Drives
HDD Size:
3.5" Drives
Drive Interface:
SATA
Server Processor:
Xeon E Processor
Features:
Ultra Low Power, Redundant Power Supply - Optional, Short Depth
Max RAM Capacity:
128GB
Konfigurieren Ab: €1,268
Konfigurieren
3.5" Drives
CyberServe Xeon E-P04S

Pedestal/Tower Server, Intel Xeon E 2200 Series, Single Processor, 4x Hot Swap Drive Bays

Form Factor:
Pedestal
Drive Bays:
Hot-Swap Drives
HDD Size:
3.5" Drives
Drive Interface:
SATA , 12Gb/s SAS
Server Processor:
Xeon E Processor
Features:
VMware Compatible, Ultra Low Power, Full Height/Length Expansion
Max RAM Capacity:
64GB
Konfigurieren Ab: €1,314
Konfigurieren
CyberServe Xeon E-406S

Short Depth, Intel Xeon E 2200 Series CPU, Single Processor 4U Rackmount Server

Form Factor:
4U
Drive Bays:
Fixed Drives
HDD Size:
3.5" Drives
Drive Interface:
SATA , 12Gb/s SAS
Server Processor:
Xeon E Processor
Features:
VMware Compatible, Extra Expansion Slots, Full Height/Length Expansion, Short Depth
Max RAM Capacity:
64GB
Konfigurieren Ab: €1,361
Konfigurieren
Best Seller 3.5" Drives
Cyberserve Xeon E-RS300-E11

Comprehensive I/O connectivity to meet different needs, Dual Intel® Gigabit Ethernet, complete server management with ASUS Control Center

Form Factor:
1U
Drive Bays:
Hot-Swap Drives
HDD Size:
3.5" Drives
Drive Interface:
SATA , 12Gb/s SAS
Server Processor:
Xeon E Processor
Features:
Extra Expansion Slots, Full Height/Length Expansion, Redundant Power Supply - Optional
Max RAM Capacity:
128GB
Konfigurieren Ab: €1,415
Konfigurieren
Best Seller 3.5" Drives
CyberServe Xeon E-104S

1U Rackmount Servers, Intel Xeon E 2300 Series, Single Processor, 4x Hot Swap Drive Bays

Form Factor:
1U
Drive Bays:
Hot-Swap Drives
HDD Size:
3.5" Drives
Drive Interface:
SATA , 12Gb/s SAS
Server Processor:
Xeon E Processor
Features:
VMware Compatible, Redundant Power Supply - Optional
Max RAM Capacity:
128GB
Konfigurieren Ab: €1,524
Konfigurieren
CyberServe Xeon E-208S

Intel Xeon E 2300 Series Processor, 2U Server, 8 x Hot Swap Drive SATA / SAS Bays

Form Factor:
2U
Drive Bays:
Hot-Swap Drives
HDD Size:
3.5" Drives
Drive Interface:
SATA , 12Gb/s SAS
Server Processor:
Xeon E Processor
Features:
VMware Compatible, Redundant Power Supply - Optional
Max RAM Capacity:
128GB
Konfigurieren Ab: €1,530
Konfigurieren
2.5" Drives
Cyberserve Xeon E-108S

Intel Xeon E 2300 Series, 1U Server with lots of Storage Capacity, Dual or Quad Gigabit LAN Ports, 8x 2.5" Drive bays

Form Factor:
1U
Drive Bays:
Hot-Swap Drives
HDD Size:
2.5" Drives
Drive Interface:
SATA , 12Gb/s SAS
Server Processor:
Xeon E Processor
Features:
VMware Compatible
Max RAM Capacity:
128GB
Konfigurieren Ab: €1,786
Konfigurieren
3.5" Drives

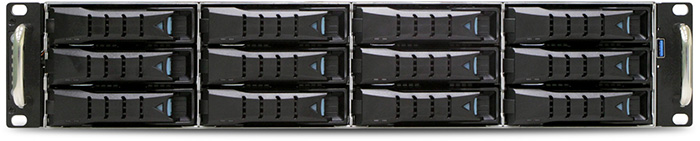

CyberServe Xeon E-212S

Intel Xeon E 2200 Series Processor, 2U Server, 12 x Hot Swap Drive Bays

Form Factor:
2U
Drive Bays:
Hot-Swap Drives
HDD Size:
3.5" Drives
Drive Interface:
SATA , 12Gb/s SAS
Server Processor:
Xeon E Processor
Features:
VMware Compatible, Redundant Power Supply - Optional
Max RAM Capacity:
64GB
Konfigurieren Ab: €3,098
Konfigurieren
3.5" Drives
CyberServe Xeon E-316S

3U Intel Xeon E 2200 Series, Single Processor, 16x Hot Swap SAS/SATA Drive Bays, upto 64Gb DDR4 ECC RAM

Form Factor:
3U
Drive Bays:
Hot-Swap Drives
HDD Size:
3.5" Drives
Drive Interface:
SATA , 12Gb/s SAS
Server Processor:
Xeon E Processor
Features:
VMware Compatible, Extra Expansion Slots, Full Height/Length Expansion, Redundant Power Supply - Optional
Max RAM Capacity:
64GB
Konfigurieren Ab: €3,154
Konfigurieren
3.5" Drives

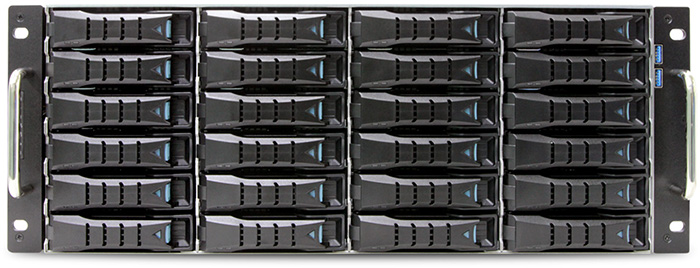

CyberServe Xeon E-424S

4U Intel Xeon E 2200 Series, Single Processor, 24x Hot Swap SAS/SATA Drive Bays

Form Factor:
4U
Drive Bays:
Hot-Swap Drives
HDD Size:
3.5" Drives
Drive Interface:
SATA , 12Gb/s SAS
Server Processor:
Xeon E Processor
Features:
VMware Compatible, Extra Expansion Slots, Full Height/Length Expansion, Redundant Power Supply - Optional
Max RAM Capacity:
64GB
Konfigurieren Ab: €3,814
Konfigurieren
CyberServe Xeon E-2300-316S

3U Intel Xeon E 2300 Series, 8x Node with Single Processor, 16x 3.5"/2.5" Hot Swap NVMe/SATA/SAS Drive Bays (2x Per Node), upto 128Gb DDR4 ECC RAM (Per Node)

Form Factor:
3U
Drive Bays:
Hot-Swap Drives
HDD Size:
3.5" Drives
Qty Drives:
16
Drive Interface:
SATA , 12Gb/s SAS, NVMe, M.2
Server Processor:
Xeon E Processor
Features:
VMware Compatible, Extra Expansion Slots, Redundant Power Supply - Standard
Max RAM Capacity:
1TB
Konfigurieren Ab: €10,745
Konfigurieren
CyberServe Xeon E-2300-324S

3U Intel Xeon E 2300 Series, 12x Node with Single Processor, 24x 3.5"/2.5" Internal NVMe/SATA/SAS Drive Bays (2x Per Node), upto 128Gb DDR4 ECC RAM (Per Node)

Form Factor:
3U
Drive Bays:
Fixed Drives
HDD Size:
3.5" Drives
Qty Drives:
24
Drive Interface:
SATA , 12Gb/s SAS, NVMe, M.2
Server Processor:
Xeon E Processor
Features:
VMware Compatible, Extra Expansion Slots, Redundant Power Supply - Standard
Max RAM Capacity:
1.5TB
Konfigurieren Ab: €15,561
Konfigurieren

Call a Broadberry Storage & Server Specialist Now: +49 89 1208 5600

Wir melden uns gern zurück



The Broadberry range of Intel Xeon E powered CyberServe servers provide essential performance for entry level servers and are ideal for smaller businesses looking for the perfect business server. The Intel Xeon E processors are available with integrated Intel UHD Graphics technology.

The Xeon E processors powering these solutions provide key performance and visuals to aid the requirements of businesses worldwide. They deliver cloud computing, big data insights, real-time analytics and processing for mission-critical data.

To handle todays workloads, a server solution capable of impressive performance is necessary. Broadberry's Intel Xeon E based servers can be configured to be optimised perfectly to your individual business needs.

Broadberry servers powered by Intel Xeon processors meet the greatly diversified demands of professionals in areas such as media and entertainment, engineering, architecture and financial services.

intel xeon e processor and server

CyberServe Xeon E Servers are Ideal for:

cyberserve intel xeon e

Based on single Intel Xeon E processors and configurable with up to 128GB of RAM, Broadberry Cyberserve rack server solutions are ideal for these applications:

  • Small Business Server
  • File & Print Server
  • Database Server
  • Mail Server
cyberserve intel xeon e


The Intel Xeon E-2300 processors present a range of ten new processor options, featuring 4, 6, or 8 cores, with thermal design points (TDPs) ranging from 65W up to 95W. These processors boast high Intel® Turbo Boost Technology frequencies, reaching as high as 5.1 GHz, and memory speeds up to 23 percent faster than the previous generation. Compared to the prior Intel Xeon E processor, the new processors outperform by up to 17 percent. When paired with Intel® C250 Series Chipsets, this platform offers a greater I/O bandwidth and speed, including options such as new PCIe 4.0, more lanes of PCIe 3.0, USB 3.2 with new 2x2 (20 Gb), and SATA 3.0 support. This platform is also validated for compatibility with the latest server operating systems, such as Windows Server 2022.

Model Cores/Threads Max Turbo Frequency Processor Base Frequency Cache TDP Processor Graphics
Intel® Xeon® E-2388G Processor 8/16 5.10 GHz 3.20 GHz 16 MB SmartCache 95W Intel® UHD Graphics P750
Intel® Xeon® E-2378G Processor 8/16 5.10 GHz 2.80 GHz 16 MB SmartCache 80W Intel® UHD Graphics P750
Intel® Xeon® E-2378 Processor 8/16 4.80 GHz 2.60 GHz 16 MB SmartCache 65W
Intel® Xeon® E-2386G Processor 6/12 5.10 GHz 3.50 GHz 12 MB SmartCache 95W Intel® UHD Graphics P750
Intel® Xeon® E-2356G Processor 6/12 5.00 GHz 3.20 GHz 12 MB SmartCache 80W Intel® UHD Graphics P750
Intel® Xeon® E-2336 Processor 6/12 4.80 GHz 2.90 GHz 12 MB SmartCache 65W
Intel® Xeon® E-2374G Processor 4/8 5.00 GHz 3.70 GHz 8 MB SmartCache 80W Intel® UHD Graphics P750
Intel® Xeon® E-2334 Processor 4/8 4.80 GHz 3.40 GHz 8 MB SmartCache 65W
Intel® Xeon® E-2324G Processor 4/4 4.60 GHz 3.10 GHz 8 MB SmartCache 65W Intel® UHD Graphics P750
Intel® Xeon® E-2314 Processor 4/4 4.50 GHz 2.80 GHz 8 MB SmartCache 65W

Broadberry CyberServe solutions powered by the Intel Xeon E family deliver support for error-correcting code (ECC) memory, which improves data integrity and system reliability through auto data correction.

With Intel Data Protection Technology (with Secure Key), performance and security are improved for a wide range of security applications, allowing for quicker and higher quality cryptographic keys and certificates.

Intel Turbo Boost Technology provides huge performance just when you need it the most. It substantially accelerates processor and graphics performance for peak loads.

Intel Hyper-Threading Technology allows for faster performance for many demanding business applications.

With Intel Virtualization Technology, you can enjoy higher performance for core virtualisation processes. There are also significant improvements to dynamic load balancing, disaster recovery, application performance, migration and provisioning.

intel xeon e cyberserve server

Business computing needs are continuing to evolve in complexity and sophistication. Servers that were fully capable in the near past are now not able to keep up with today's modern workloads.

Broadberry CyberServe solutions powered by Intel Xeon E processors feature cost-effective and enhanced performance. The Xeon E processors deliver 50% more cores/threads than their Xeon E3 predecessors. They also feature a newer and faster microarchitecture. This robust server solution delivers leading price/performance.

Security is substantially improved with Intel Data Protection Technology (with Advanced Encryption Standard New Instructions). This happen through the encrypting of data, which is managed without the slowing of any response times. Broadberry storage servers also utilise advanced security technologies for secure cloud services.

Broadberry CyberServe Servers powered by the Intel Xeon E family of processors also feature a Trusted Platform Module (TPM). TPM is a microcontroller which stores passwords, keys and digital certificates. It also supports Intel vPro Technology and Intel Trusted Execution Technology (Intel TXT).


Broadberry CyberServe Servers based on Intel Xeon E processors represent an astute investment that will enable your business to grow and evolve while also delivering a reliable and constantly available solution to safeguard your data and host critical business software. You may be a small business, but the value of your data is huge. With Broadberry server solutions you can be sure that your data will remain accessible and fully protected.

Our range of CyberServe Servers are great for small businesses which require a system that is extremely effective at performing a single job as an on-premise, dedicated server.

small business ideas


Intel Xeon E 2200 Processors
Latest Range
Intel Xeon E 2300 Processors
Cores 6 8
Threads 12 16
Max Turbo Frequency 4.8 GHz 5.1 GHz
Processor Base Frequency 3.8 GHz 3.7 GHz
Cache 12 MB 16MB SmartCache
Graphics Intel® UHD Graphics P630 Intel® UHD Graphics P750
TDP 71W - 95W 65W - 95W

Now Faster Than Ever

xeon e platform performance improvements

Unlike other leading server manufacturers, all Broadberry come with feature-rich IPMI included.

IPMI features

IPMI 2.0 based management
  • BMC stack with a full IPMI 2.0 implementation
  • Hardware health monitor
  • Remote power control
Keyboard, Video & Mouse (KVM) Console Redirection with multi language support
Serial over LAN (SOL)
Media Redirection
  • Simultaneous floppy and CD/ DVD redirection
  • Efficient USB 2.0-based CD/DVD redirection, with typical speed greater than 15xCD
  • Support for USB key
VLAN support
Event Log and Alerting
  • Read Log events
  • Full SMTP support
  • Sensor readings
  • SNMP trap
  • Email alerts
Sophisticated User Management
  • IPMI based user management
  • Added security with SSL (HTTPS)
  • Multiple user permission level
  • Multiple user profiles
Active Directory/LDAP Client support
  • Direct LDAP support from the device
  • Windows Active Directory and Open-LDAP
Common Information Model (CIM)
  • CIM Object Manager (CIMOM)
  • True Object Manager with CIM class handling
  • Creating class, instance and working with the instances
  • Core support for all DMTF profiles
SMASH and CLP support
  • SSH based SOL
  • Power control of the server
  • Support for all DMTF Profiles
  • Complete command support
WSMAN Support
  • Supports WSMAN as well as WS-CIM
  • Rich SDK capability for OEM extensions
  • Fully organically developed code as library
  • LIGHTTPD
  • HTTP and HTTPS support
  • Complete WSMAN support - Discovery, Enumeration, Get, Put, Subscribe and Eventing
  • Rich client library support (C, Java, JavaScript)
  • Web Interface Multilanguage support
  • Full Unicode support
  • Multiple language support for multiple clients simultaneously
Web based configuration
  • Full configuration using web UI
Firmware Firewall
Watchdog Timer
Fail-safe firmware upgrade
Tools to flash firmware in DOS, Linux and Windows


Unser präzises Testing

Alle Broadberry Server- und Storage-Lösungen unterziehen vor Abgang aus unserem Lagerhaus einem 48- Stunden Testlauf. Zusammen mit diesem Prüfungsprozess und sowie die hochqualitativ branchenführende Komponenten, wollen wir sicherstellen, dass alle unserer Server- und Storage-Lösungen den höchst strengen Qualitätsrichtlinien entsprechen, was von uns gefordert wird.


Unvergleichbare Flexibilität

Unser wichtigstes Ziel ist es , hochwertige Server- und Storage-Lösungen zu einem überragendem Preis- und Leistungsverhältnis anzubieten. Wir verstehen, dass jedes Unternehmen verschiedene Anforderungen hat, und wir wollen dabei gern eine unvergleichbare Flexibilität für Ihre individuell angepasste Server- und Storage-Lösungen zur Verfügung stellen und Ihre Anforderungen schnell und effizient erfüllen.

Vertraut von weltweit Top-Marken

Wir haben wir uns als führender Anbieter von Server und Storage-Lösungen in England etabliert und seit 1989, beliefern wir weltweit größten etablierten Weltkonzernen unsere Server und Storage-Lösungen. Zu unserem Kundenstamm gehören :
