Supermicro Twin SuperServer SYS-620TP-HC0TR SYS-620TP-HC0TR

4 node solution optimised for HPC, hyper-converged infrastructure and big data. 2x PCI-E 4.0 x16 and 1x PCI-E 4.0 x8 slots per node. Redundant power.

  • Key Applications - High Performance Computing, Hyper-Converged Infrastructure, Big Data / Big Science, Oil immersion, Liquid Cooling

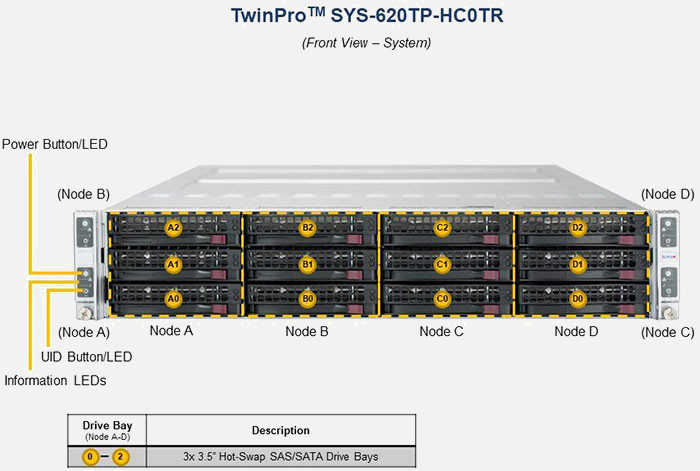

  • Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
  • Dual Socket P+ (LGA-4189) 3rd Generation Intel® Xeon® Scalable Processors
  • Intel® C621A chipset
  • 16 DIMMs, Up to 4TB 3DS ECC DDR4-3200 LRDIMM/RDIMM
  • 2 PCI-E 4.0 x16 (LP), 1 PCI-E 4.0 x8 (with M.2 adapter installed for support 2 NVME up to 22x80 mm)
  • Intel® X710 Dual port 10GBase-T LAN onboard
  • 3x 3.5" hot-swap SATA/SAS drive bays
  • 4 heavy duty 8cm PWM fans with optimal fan speed control (Per System)

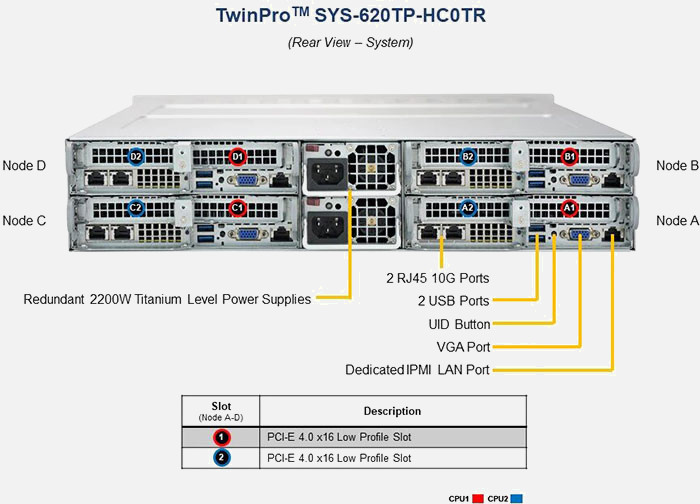

  • Two 2200W redundant power supplies with PMBus
  • ASPEED AST2600 BMC, 2 USB, VGA. RoT, 2 SATADOM ports
  • Broadcom® 3008 SAS (12Gbps); 3 slots per node; RAID 0, 1, 1E/10 suppor



Loading Configurator...

Preise der Produkte sind Aenderungen ohne Vorankuendigung vorbehalten

3 Years Warranty as Standard

Buy with confidence knowing all Broadberry CyberServe rack servers are backed up by our 3 year warranty, with further warranty upgrade options available.

Configure with Octa Processor

Octa Processors allow for increased multi-tasking, delivering huge processing power. They are ideal if you require a solution with extremely high processing power.

Configure With Up to 2TB Of RAM

Equipable with up to a tremendous 2TB of RAM, allowing for super fast and ultra efficient multi-tasking for even the most demanding of applications.

Optimised For High Performance Computing

Fully optimised for HPC, this server is excellent at deal with computationally-intensive applications.

Featuring Redundant Power Supply

Coming with a redundant power supply, this system has a backup power source it can fall back on if the original power source were to fail.

Configure With Hot-Swap Drives

The Supermicro Twin SuperServer SYS-620TP-HC0TR | SYS-620TP-HC0TR features hot-swap hard drives, giving you more flexibility and allowing you to remove drives without having to shut down the system.

Configure with 3.5" Drives

Configure the Supermicro Twin SuperServer SYS-620TP-HC0TR | SYS-620TP-HC0TR with 3.5" drives. These drives are more cost-effective, offer a larger storage capacity and offer more flexibility.


A 2U Supermicro SuperServer based on 8x Intel 3rd Gen Intel Xeon Scalable Processor (X12) range of processors, the Supermicro Twin SuperServer SYS-620TP-HC0TR | SYS-620TP-HC0TR is configurable with up to 12x Hot-Swap Drives drive bays, and designed for optimal performance with 64x 3200Mhz DDR4 memory sockets .

The Supermicro Twin SuperServer SYS-620TP-HC0TR | SYS-620TP-HC0TR supports the Intel Intel Xeon Scalable Processors 3rd Generation family in a high-density 2U form-factor. These SuperServers are ideal for network infrastructure, front-end enterprise, and minimal-downtime cluster server systems.

The Supermicro Twin SuperServer SYS-620TP-HC0TR | SYS-620TP-HC0TR boasts 8 PCI-Express slots for expandability, and as with all of our servers it can be fully customised online

Supermicro Twin SuperServer SYS-620TP-HC0TR | SYS-620TP-HC0TR Specs
  • Brand: Supermicro
  • U Size: 2U
  • Processor Family: 3rd Gen Intel Xeon Scalable Processor (X12)
  • Range: HPC Supermicro SuperServers
  • High-Density Twin Servers:
  • Drive Bays: Hot-Swap Drives
  • HDD Size: 3.5" Drives
  • Maximum RAM Capacity: 8.2TB
